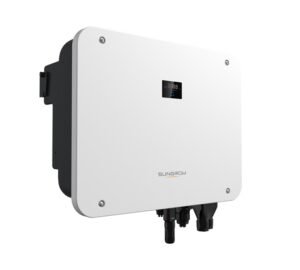

Grounding cable faults can lead to significant safety risks and operational inefficiencies in hybrid solar inverters like the Sungrow SH15/20/25T. Such faults may compromise the inverter’s ability to safely dissipate excess electricity, potentially leading to electrical hazards. This blog post outlines steps to diagnose and resolve grounding cable faults, ensuring your Sungrow inverter operates safely and effectively.
## Understanding Grounding Cable Faults
A grounding cable fault occurs when the electrical grounding system is compromised, which can be due to improper connections, damaged cables, or insulation failures. These issues can prevent the grounding system from performing its primary function: to protect the electrical installation and connected devices from surge currents and to help in the safe operation of electrical devices.
### Common Indications of a Grounding Fault:
– The inverter displays an error or fault code related to grounding.
– Unusual system behaviors such as intermittent shutdowns or electrical shocks.
– Tripping of circuit breakers or safety switches without other apparent reasons.
## Step-by-Step Troubleshooting Guide
### Step 1: Check the AC Cable Connection
The first step in troubleshooting a grounding cable fault is to ensure that all AC cable connections are correct and secure:
– **Power Down the System**: Before checking the cables, ensure that power to the inverter is turned off to avoid any electrical hazards.
– **Inspect AC Connections**: Check the connections at both the inverter and the main power supply. Ensure that all connections, including the neutral and live wires, are secure and not loose.
### Step 2: Inspect the Insulation of the Ground Cable
After verifying the AC connections, the next step is to check the condition of the insulation surrounding the ground cable:
– **Visual Inspection**: Look for any signs of wear, tear, or damage to the insulation of the ground cable, particularly where it might come close to live wires.
– **Use an Insulation Tester**: If available, use an insulation tester to check the integrity of the ground cable’s insulation. This tool can help identify areas where insulation may be compromised, which could lead to a fault.
### Step 3: Contact Sungrow Support
If, after these checks, the grounding cable fault persists, further professional assistance is required:
– **Reach Out to Sungrow**: Contact Sungrow’s customer support for guidance on resolving the issue. Be prepared to provide details of the steps already taken and any observations related to the fault.
– **Professional Inspection**: Sungrow may recommend a professional inspection or send a technician to ensure that all components of the grounding system are correctly installed and functioning properly.
## Conclusion
Grounding cable faults in solar inverters like those from Sungrow should be addressed promptly to maintain system safety and functionality. By following these troubleshooting steps, you can identify and potentially rectify grounding issues. Regular maintenance checks, including visual inspections and testing of the grounding system, can prevent such faults from occurring and ensure that your solar power system remains a safe and reliable source of energy. If troubleshooting does not resolve the issue, professional support from Sungrow is essential to address and correct the problem effectively.
